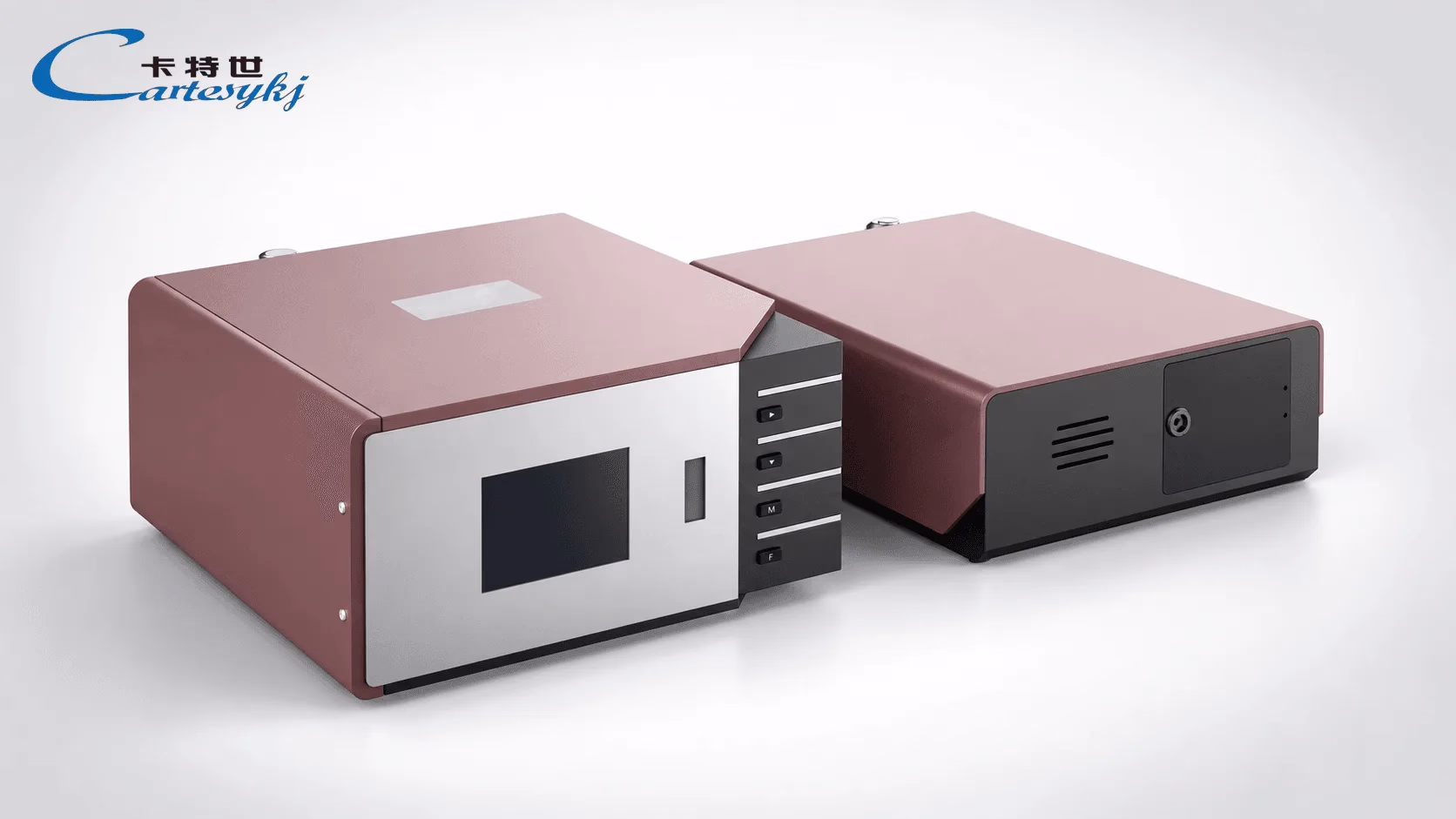

Automotive Exhaust Gas Analyzer | MQW-50A/50B/5105/5102/511/411/311

Regulatory compliance during periodic technical inspections demands reliable automotive emissions testing equipment. Measuring tailpipe pollutants across varied combustion cycles requires continuous analytical accuracy. Testing facilities and vehicle manufacturers monitor carbon monoxide (CO), carbon dioxide (CO2), hydrocarbons (HC), nitrogen oxides (NO and NO2), and residual oxygen (O2) to verify engine health and enforce statutory emission thresholds.

Selecting an appropriate automotive exhaust gas analyzer or a specialized diesel exhaust gas analyzer requires understanding detection principles, gas conditioning methods, and legal testing procedures. Whether conducting dual-idle tests on passenger cars or transient loaded cycles on heavy commercial chassis, using standard-compliant automotive emissions testing equipment ensures continuous lane availability and dependable inspection results.

Table of Contents

• Verified Equipment Definition and Material/Application Scope
• Buyer Value and Sourcing Considerations Supported by Supplied Facts
• Verified Technology Trends and Classifications
• Documented Materials, Quality Controls, Certifications, and Components
• Practical Sourcing and Risk-Mitigation Guidance
• Frequently Asked Questions
• Conclusion

Verified Equipment Definition and Material/Application Scope

Industrial automotive emissions testing equipment comprises analytical gas instrumentation engineered to extract, condition, and analyze exhaust gas samples from internal combustion powertrains. The primary objective of an automotive emissions testing equipment installation is to measure multiple toxic and greenhouse gases simultaneously under real-world workshop conditions.

A core capability of multi-gas automotive emissions testing equipment is calculating the excess air coefficient (λ). By processing measured concentrations of CO, CO2, HC, and O2 through standardized combustion equations, the equipment determines whether the fuel-air charge is lean, stoichiometric, or rich.

Different measurement principles are integrated inside modern automotive emissions testing equipment:

• Non-Dispersive Infrared (NDIR): Employs infrared optical absorption to quantify carbon monoxide (CO), hydrocarbons (HC), and carbon dioxide (CO2). Certain high-performance optical configurations also detect nitric oxide (NO).
• Electrochemical Cells: Utilize chemical reaction sensors to establish partial pressures and volumetric concentrations of oxygen (O2) and auxiliary nitric oxide (NO).
• Ultraviolet (UV) Differential Spectroscopy: Employs UV differential optical absorption to measure nitric oxide (NO) and nitrogen dioxide (NO2) simultaneously, avoiding water vapor and hydrocarbon interference typical in diesel exhaust.
• NOx Catalytic Conversion: Deploys a heated catalytic substrate that converts nitrogen dioxide (NO2) into nitric oxide (NO), enabling unified downstream detection by NDIR cells.

The operational scope of certified automotive emissions testing equipment covers four primary sectors:

• Periodic Motor Vehicle Inspection Stations: Statutory lanes executing dual-idle speed checks, steady-state loaded cycles, transient dynamometer profiles, and diesel free acceleration tests.
• Automotive Manufacturing Plants: End-of-line verification, conformity of production (COP) audit bays, and engine assembly calibration cells.
• Commercial Auto Repair Workshops: Diagnostic troubleshooting, post-overhaul verification, and catalytic converter efficiency benchmarking.
• Motorcycle Repair Facilities: Small-displacement engine tuning and dual-idle exhaust verification for two-stroke and four-stroke bikes.

Buyer Value and Sourcing Considerations Supported by Supplied Facts

Procuring analytical instruments from a professional vehicle inspection equipment supplier requires balancing sample response time, operational power draw, chassis dynamometer compatibility, and transportability. Deploying the correct configuration of automotive emissions testing equipment directly prevents vehicle throughput bottlenecks in high-volume testing facilities.

The following table summarizes documented instrument models, analytical methods, response speeds, and hardware profiles across petrol, diesel, and two-wheeler applications:

Model ID

Target Application

Measurement Method

Response Time (T90)

Power & Weight

MQW-50A

Gasoline vehicles & motorcycles (Dual idle)

NDIR (CO, HC, CO2); Electrochemical (O2, NO)

NDIR: 8 s; NO: 15 s; O2: 12 s

65 W; Approx. 15 kg

MQW-50B

Gasoline vehicles (Steady-state condition)

NDIR (CO, HC, CO2, NO); Electrochemical (O2)

HC/CO/CO2: 8 s; NO: 10 s; O2: 15 s

110 W; Approx. 16 kg

MQW-5105

Gasoline vehicles (Simple transient condition)

NDIR (CO, HC, CO2, NO) + NOx converter; Electrochemical (O2)

HC/CO/CO2: 3.5 s; NOx: 4.5 s

Main: 110 W; Pretreatment: 350 W; Approx. 28 kg total

MQW-5102

Diesel vehicles (Free acceleration & lug-down)

NDIR (CO2, NO) + NOx converter; Smoke meter direct connection

CO2 / NOx: 4.5 s

Main: 110 W; Pretreatment: 350 W; Approx. 28 kg total

MQW-5102(Z)

Diesel vehicles (Free acceleration & lug-down)

NDIR (CO2); UV differential (NO, NO2)

CO2 / NOx: 4.5 s

260 W; Approx. 15 kg

MQW-511 / 411 / 311

Motorcycle exhaust testing

NDIR (CO, CO2, HC); Electrochemical (O2, NO)

NDIR: 8 s; NO: 15 s; O2: 12 s

45 W; Approx. 8 kg

Sourcing teams must match the internal hardware configuration of automotive emissions testing equipment to the statutory test protocol. A basic dual-idle station operates efficiently with low-wattage units such as the MQW-50A (65 W) or MQW-511 (45 W). In contrast, loaded transient cycles mandate rapid response times under 4.5 seconds, requiring conditioned pretreatment trains like those on the MQW-5105 or MQW-5102.

Verified Technology Trends and Classifications in Automotive Emissions Testing Equipment

Analytical requirements vary significantly across combustion chemistry, engine load, and legal test standards. Vehicle emissions testing setups fall into distinct structural classifications.

Gasoline Spark-Ignition Emissions Systems

Gasoline powertrains release elevated concentrations of unburned hydrocarbons, carbon monoxide, and nitric oxide. To measure these constituents, automotive emissions testing equipment integrates multi-channel optical benches. Basic dual-idle routines rely on an automotive exhaust gas analyzer operating at response times between 8 and 15 seconds. However, loaded transient driving cycles require rapid T90 response times of 3.5 seconds for HC/CO/CO2 and 4.5 seconds for NOx, backed by active catalytic conversion to transform NO2 into NO.

Diesel Exhaust Gas Analyzer Architectures

Compression-ignition engines operate with surplus air, generating substantial soot, nitrogen dioxide, and water vapor. A dedicated diesel exhaust gas analyzer must manage harsh exhaust conditions while isolating NO and NO2. The MQW-5102 incorporates a NOx converter and connects directly to an MQY-202 smoke meter, combining optical opacity metrics with gaseous measurements. Alternatively, the MQW-5102(Z) utilizes UV differential absorption to measure NO and NO2 simultaneously without requiring upstream chemical converter cartridges.

Documented Analytical Ranges

Standardized automotive emissions testing equipment operates within verified detection boundaries across light-duty, heavy-duty, and two-wheeled vehicle inspections:

Measured Gas Species

Measurement Unit

Documented Range

Hydrocarbons (HC)

×10-6 (ppm vol)

0 – 9999

Carbon Monoxide (CO)

×10-2 (% vol)

0 – 15.00

Carbon Dioxide (CO2)

×10-2 (% vol)

0 – 18.00

Nitric Oxide (NO)

×10-6 (ppm vol)

0 – 5000

Nitrogen Dioxide (NO2)

×10-6 (ppm vol)

0 – 1000

Oxygen (O2)

×10-2 (% vol)

0 – 25.00

Documented Materials, Quality Controls, Certifications, and Components

Operating automotive emissions testing equipment in high-throughput inspection bays demands rugged mechanical enclosures, corrosion-resistant pneumatic paths, and stable sensor chambers. Workshop air contains dirt, moisture, and temperature fluctuations that can distort optical baselines.

Key sub-assemblies across certified automotive emissions testing equipment lines include:

• Precision Optical Benches: Temperature-regulated optical chambers featuring non-dispersive infrared emitters and narrow-band filters shielded against mechanical vibration and thermal drift.
• Sample Pretreatment Systems: Auxiliary conditioning assemblies drawing up to 350 W to cool raw exhaust gases, strip condensate, and trap coarse particulate matter before the gas enters sensitive measurement cells.
• NOx Conversion Modules: High-efficiency catalytic converters that split nitrogen dioxide (NO2) into nitric oxide (NO) for uniform NDIR channel quantification.
• Long-Life Electrochemical Cells: Replaceable chemical sensing modules configured for high-precision oxygen analysis and auxiliary NO detection.
• Differential UV Optical Systems: Robust ultraviolet optical spectrometers engineered for direct, simultaneous detection of NO and NO2 in diesel exhaust streams.

Regulatory adherence represents a non-negotiable benchmark when purchasing automotive emissions testing equipment. Verified platforms meet strict national and international metrological criteria:

• GB 18285: Enforces emission limits and inspection methodologies for spark-ignition vehicles using dual-idle speed, steady-state loaded, and simple transient condition test cycles.
• GB 3847: Dictates emission limits and verification procedures for diesel compression-ignition vehicles via free acceleration and lug-down loaded cycles.
• GB 14621: Regulates exhaust pollutant limits and test procedures for motorcycles and mopeds under dual-idle test conditions.
• ISO 3930 / OIML R99: International accuracy specifications dictating instrument metrology, calibration drift tolerances, and response profiles for vehicle exhaust measurement systems.

Practical Sourcing and Risk-Mitigation Guidance

Procuring automotive emissions testing equipment requires technical evaluation to prevent testing bottlenecks and unexpected lifecycle costs. Inspection station managers and workshop owners should follow a structured evaluation procedure:

• Verify Test Cycle Compatibility: Confirm that the response speed of the automotive emissions testing equipment complies with local regulations. Facilities running transient loaded tests require fast response times (T90 ≤ 3.5 to 4.5 seconds, as found in the MQW-5105 and MQW-5102), while dual-idle lanes can operate with standard 8- to 15-second response systems.
• Assess Sample Conditioning Hardware: Exhaust gas contains high moisture levels and soot. Sourcing automotive emissions testing equipment with robust 350 W sample pretreatment modules protects optical benches from water condensation and particle fouling.
• Check Peripheral and Interface Integration: Ensure the main unit supports necessary peripheral connections. For example, the MQW-5102 connects directly to an MQY-202 smoke meter, allowing unified diesel opacity and NOx data collection on a single test line.
• Plan Routine Consumable Maintenance: Account for the service life of consumable parts. Electrochemical O2 cells degrade over time, NOx converters require periodic efficiency checks, and internal filter elements must be replaced regularly to prevent sampling flow drops.

Frequently Asked Questions

How does automotive emissions testing equipment calculate the excess air coefficient (λ)?

The equipment calculates the excess air coefficient (λ) by feeding measured concentrations of carbon monoxide (CO), carbon dioxide (CO2), hydrocarbons (HC), and oxygen (O2) into standardized combustion balance formulas, such as the Brettschneider equation, establishing the exact fuel-air ratio of the sampled engine.

Why do diesel test procedures require a specialized diesel exhaust gas analyzer?

Diesel combustion produces higher volumes of soot, moisture, and nitrogen dioxide (NO2) compared to gasoline engines. A dedicated diesel exhaust gas analyzer integrates robust sample pretreatment modules, NOx catalytic converters, or UV differential spectroscopy to measure NO and NO2 accurately without optical interference, often interfacing with smoke meters like the MQY-202.

What is the difference between steady-state and simple transient condition testing equipment?

Steady-state equipment (such as the MQW-50B) measures emissions at constant engine speeds and loads, operating with standard 8- to 15-second response times. Simple transient condition systems (such as the MQW-5105) evaluate exhaust under dynamic acceleration and deceleration on chassis dynamometers, requiring T90 response times between 3.5 and 4.5 seconds supported by 350 W sample conditioning units.

What standards govern the accuracy of automotive emissions testing equipment?

Key standards include GB 18285 for spark-ignition petrol vehicles, GB 3847 for compression-ignition diesel vehicles, GB 14621 for motorcycles, and international metrological benchmarks such as ISO 3930 and OIML R99 Class 0/00.

Conclusion

Selecting reliable automotive emissions testing equipment requires matching measurement technologies—NDIR, UV differential, and electrochemical—to specific vehicle categories and regulatory testing methods. Evaluating response speeds, sample conditioning hardware, and power requirements ensures high inspection lane productivity and precise compliance reporting. For tailored configurations or detailed engineering specifications, contact our technical team for an engineering consultation.
