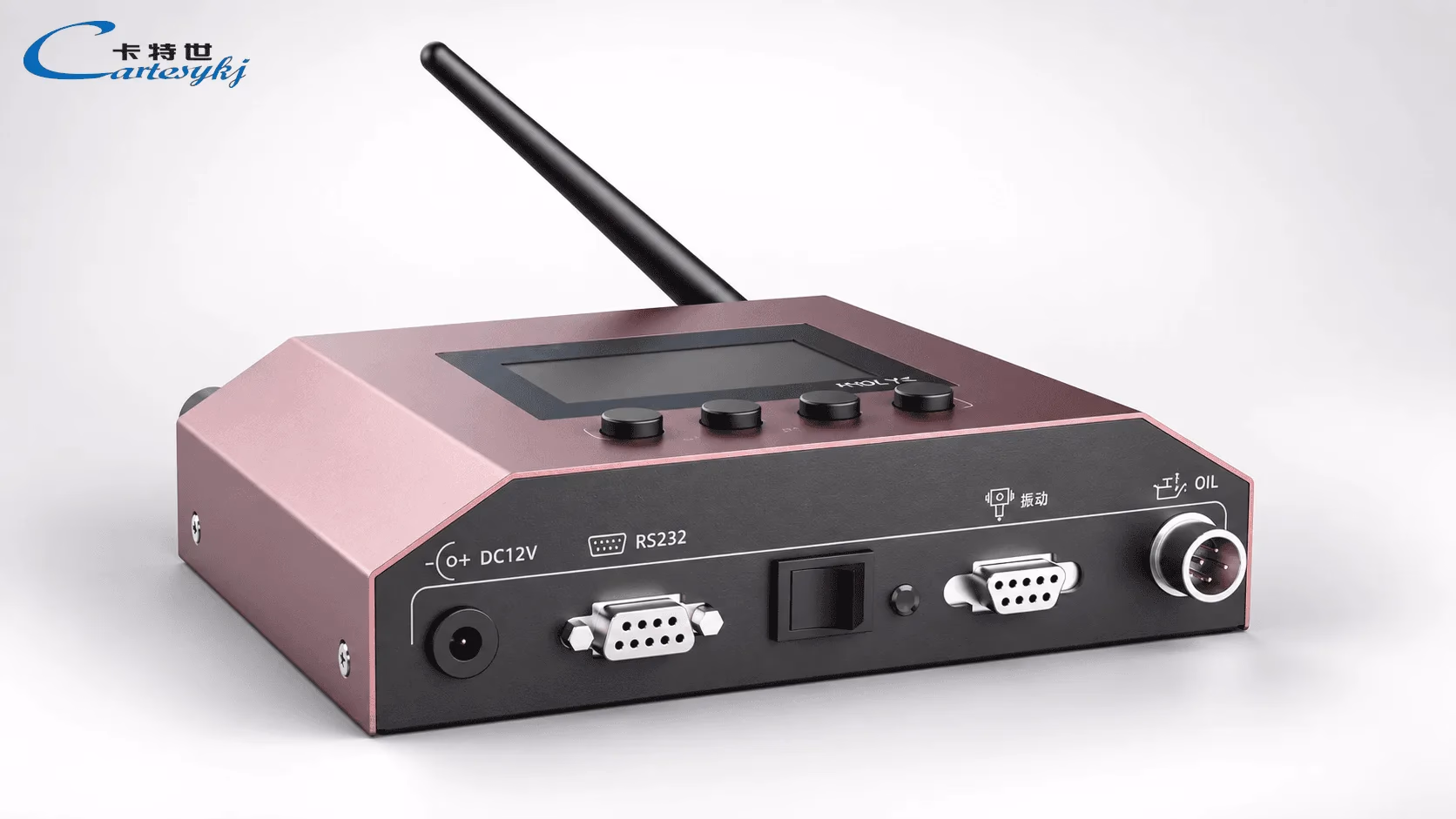

Mobile Source Five-Parameter Comprehensive Tester: MQY-5C

In-use vehicle emission inspections and roadside enforcement carry strict regulatory liabilities. When environmental parameters or engine operational baselines are measured inaccurately, entire emissions test cycles fail standard compliance verification, leading to invalid reporting or disputes. The Mobile Source Five-Parameter Comprehensive Tester (Model MQY-5C) addresses these challenges by integrating ambient parameter detection and engine operating telemetry into a single, portable unit. Utilizing imported sensors and advanced DSP Digital Signal Processing Technology, the MQY-5C provides stable, repeatable data acquisition for inspection facilities and field enforcement teams operating under rigorous test protocols.

Engineered to satisfy Chinese national emission standards, the device is fully Compliant with GB 18285 and GB 3847. It directly captures Five Parameters: Temperature, Humidity, Barometric Pressure, Oil Temperature, Engine Speed. With a lightweight form factor, internal battery power lasting over 8 hours, and dual communication interfaces, this Mobile Source Five-Parameter Comprehensive Tester delivers field-ready reliability across diverse mobile source testing environments.

Table of Contents

• 1. Verified Equipment Definition and Application Scope
• 2. Buyer Value and Operational Sourcing Considerations
• 3. Verified Technology Trends and Working Classifications
• 4. Documented Technical Specifications and Quality Metrics
• 5. Practical Sourcing and Risk-Mitigation Guidance
• Frequently Asked Questions
• Engineering Consultation and Technical Support

1. Verified Equipment Definition and Material/Application Scope

The MQY-5C Mobile Source Five-Parameter Comprehensive Tester is an integrated, multi-functional diagnostic instrument designed to collect real-time ambient and powertrain variables required during exhaust emission evaluations. Instead of deploying disparate gauges for weather metrics and separate tachometer tools, this instrument centralizes environmental and engine baselines into a consolidated measuring platform.

By capturing the essential Five Parameters: Temperature, Humidity, Barometric Pressure, Oil Temperature, Engine Speed, the Mobile Source Five-Parameter Comprehensive Tester establishes the atmospheric correction coefficients and engine operating readiness mandated during standardized exhaust inspection sequences. The equipment incorporates imported sensors that deliver broad detection limits alongside high accuracy across dynamic industrial conditions.

The application scope of the MQY-5C Mobile Source Five-Parameter Comprehensive Tester spans several critical sectors within the transportation and machinery inspection industries:

• Motor Vehicle Inspection Stations: Periodic technical inspection (PTI) facilities conducting official emission checkouts requiring certified environmental compensation parameters.
• Automotive Manufacturers and Assembly Plants: End-of-line verification, quality assurance auditing, and pre-delivery vehicle emission diagnostics.
• Vehicle and Motorcycle Repair Shops: Diagnostic maintenance, post-overhaul verification, and pre-inspection tuning for passenger cars, commercial transports, and two-wheelers.
• On-Road Inspection and Enforcement Checkpoints: Mobile environmental enforcement units conducting roadside screening of light-duty and heavy-duty vehicles using a dedicated Mobile Source Five-Parameter Comprehensive Tester.
• Non-Road Mobile Machinery Testing: Field emission auditing and monitoring of construction equipment, agricultural tractors, and industrial off-highway machinery.

A structured menu-based operating interface allows field technicians to toggle between measurement views, configure test parameters, and calibrate sensor channels directly on-site without complex software overhead.

2. Buyer Value and Sourcing Considerations Supported by Supplied Facts

Procuring specialized inspection hardware requires weighing operational speed, equipment durability, and long-term compliance overhead. Sourcing the MQY-5C Mobile Source Five-Parameter Comprehensive Tester provides tangible technical advantages over piecemeal diagnostic tools.

Traditional inspection workflows often utilize independent barometers, thermo-hygrometers, contact or optical tachometers, and dipstick temperature probes. This fragmented approach increases setup latency, introduces multiple points of measurement drift, and complicates data synchronization into central inspection servers. The Mobile Source Five-Parameter Comprehensive Tester consolidates these functions into a single chassis weighing approximately 1 kg, significantly cutting operational time during high-throughput vehicle lanes and roadside spot-checks.

Field operations demand reliable, untethered power. The MQY-5C features an internal high-performance rechargeable battery providing greater than 8 hours of continuous operation on a full charge. This allows field inspection teams to complete full-shift mobile source verifications without relying on external DC adaptors or vehicle alternator taps. For stationary bench or in-bay use, the device operates stably on DC 8.4V to 12.6V, consuming a rated power of only 4W.

Operational Feature

MQY-5C Integrated Configuration

Conventional Multi-Device Setup

Measured Parameters

5 Parameters Integrated (Ambient & Engine)

Requires 3 to 4 Disparate Instruments

Signal Processing

DSP Digital Signal Processing Technology

Analog Conditioning / Mixed Microcontrollers

Data Communication

RS-232 Serial + WiFi Wireless

Varies (Manual Logging or Fragmented Ports)

Power Independence

Built-in Battery (>8 Hours Endurance)

Frequent Battery Swaps or External Leads

Equipment Weight

Approximately 1 kg Total

Cumbersome Combined Payload (3–5 kg)

Data transmission flexibility is another critical evaluation factor. Modern inspection stations often run automated lane software, while mobile roadside squads increasingly rely on tablet-based enforcement tools. The MQY-5C Mobile Source Five-Parameter Comprehensive Tester accommodates both operating models through dual-mode connectivity: a physical RS-232 serial interface for shielded, direct PC integration, and onboard WiFi networking for wireless data transmission.

Because the unit is equipped with a menu-based user interface, technicians can quickly navigate between diagnostic functions, system settings, and real-time parameter sweeps. This structural simplicity minimizes operator training curves and curbs entry mistakes during high-stress roadside checks.

3. Verified Technology Trends and Classifications

Mobile source testing instruments have shifted from analog sensor architectures toward digital signal processing. Environmental factors such as transient exhaust heat, ignition coil interference, and fluctuating barometric pressures in industrial testing environments often compromise legacy analog signal paths. An advanced Mobile Source Five-Parameter Comprehensive Tester eliminates these legacy bottlenecks through unified architecture.

The MQY-5C integrates DSP Digital Signal Processing Technology to maintain high stability under variable field conditions. By digitizing sensor signals close to the point of acquisition and executing digital filtering routines, the onboard processor minimizes electrical noise caused by secondary ignition circuits, alternator hum, and heavy industrial machinery. This ensures stable reading outputs even when measuring high-revving engines or operating near high-power inspection dynamometers.

The tester is strictly Compliant with GB 18285 and GB 3847. These standards govern emissions testing protocols across spark-ignition (gasoline) and compression-ignition (diesel) vehicles:

• GB 18285 Compliance: Fulfills environmental parameter collection mandates, oil temperature verification, and engine speed detection rules under steady-state loaded conditions, two-speed idle tests, and transient mass emission testing.
• GB 3847 Compliance: Satisfies regulatory parameters for diesel free-acceleration smoke tests and loaded lug-down cycles, verifying engine pre-conditioning thresholds (oil temperature) and precise RPM recording.

The instrument provides built-in sensor calibration functionality. This enables testing laboratories to execute routine reference adjustments against certified secondary standards, ensuring that sensor drift over time does not compromise formal test validity when utilizing the Mobile Source Five-Parameter Comprehensive Tester.

Modern classifications separate basic spot-check diagnostic tools from fully calibratable testing units. The MQY-5C falls into the precision, field-calibratable tier, combining portability with industrial accuracy baselines suitable for evidentiary enforcement.

4. Documented Materials, Quality Controls, Certifications and Components

The MQY-5C Mobile Source Five-Parameter Comprehensive Tester is engineered around compact dimensions of 182 mm × 180 mm × 50 mm, making it sufficiently ergonomic for handheld operation or temporary dashboard mounting. The enclosure houses imported high-precision sensors engineered to perform across wide measurement windows while retaining low indication errors.

Below are the verified technical parameters, ranges, resolutions, and tolerances governing the Mobile Source Five-Parameter Comprehensive Tester:

Target Parameter

Unit

Measurement Range

Resolution

Indication Error

Temperature

℃

-20.0 to 60.0

Supplied standard

±0.5

Humidity

%RH

0 to 95.0

Supplied standard

±3

Barometric Pressure

kPa

40 to 110.0

Supplied standard

±0.5

Oil Temperature

℃

-30.0 to 150.0

Supplied standard

±2

Engine Speed

rpm

500 to 6000

1

±1%

In addition to verified measurement performance, the instrument is engineered to operate within clear environmental and electrical envelopes:

• Operating Ambient Temperature: -5℃ to 45℃.
• Operating Relative Humidity: 0% to 95% RH.
• Operating Ambient Pressure: 75.0 kPa to 110 kPa.
• Environmental Protection: Designed for environments free of strong electromagnetic field interference, intense mechanical impact, and excessive structural vibration.
• Working Voltage: DC 8.4V to 12.6V via internal battery or regulated external input.
• Rated Power Consumption: 4W.
• Total Unit Weight: Approximately 1 kg.

These specifications ensure that the Mobile Source Five-Parameter Comprehensive Tester maintains measurement integrity whether deployed within temperature-controlled vehicle test centers or exposed to field weather during non-road mobile machinery spot-inspections.

The combination of imported sensors and DSP processing delivers reliable reading stabilization, allowing testing centers to meet statutory verification parameters without repeated abort cycles.

5. Practical Sourcing and Risk-Mitigation Guidance

When selecting portable diagnostic equipment for emissions testing operations, procurement specialists must balance compliance verification, physical durability, and maintenance protocols. Using uncertified or uncalibrated diagnostic sensors risks data invalidation during official audits. Deploying a calibrated Mobile Source Five-Parameter Comprehensive Tester mitigates these operational vulnerabilities.

To reduce sourcing and operational risks, consider the following technical checklist:

• Validate Standard Compliance: Verify that testing hardware explicitly adheres to the data acquisition protocols mandated by local authorities, such as GB 18285 and GB 3847, for environmental correction factors and engine thermal readiness.
• Review Calibration Procedures: Ensure the device supports routine calibration across all five measuring channels. Periodic span and zero calibrations are necessary to counteract normal sensor aging in the Mobile Source Five-Parameter Comprehensive Tester.
• Check Ingress and Interference Boundaries: Confirm operating areas remain within verified thresholds (-5℃ to 45℃, 75.0 kPa to 110 kPa) and avoid running communication cables adjacent to unshielded high-voltage ignition leads or ungrounded heavy motor drives.
• Evaluate Data Interface Compatibility: Confirm your vehicle inspection station software or telemetry receiver supports direct RS-232 serial parsing or WiFi networking protocols to eliminate manual re-keying errors.
• Inspect Power Endurance: Validate that the internal battery offers sufficient run time for mobile inspection shifts (>8 hours) to prevent abrupt data loss in field campaigns.

By establishing rigorous quality assurance steps and utilizing instruments designed for dynamic field conditions, testing centers can ensure high throughput, defendable emission records, and reduced diagnostic downtime.

In addition, choosing an integrated Mobile Source Five-Parameter Comprehensive Tester simplifies hardware management, inventory control, and recalibration scheduling compared to managing disparate multi-vendor toolkits.

Frequently Asked Questions

What five parameters does the Mobile Source Five-Parameter Comprehensive Tester measure?

The unit measures Five Parameters: Temperature, Humidity, Barometric Pressure, Oil Temperature, Engine Speed. These cover ambient weather conditions needed for emission correction alongside core engine operating states.

How does the unit transmit data to inspection systems?

The Mobile Source Five-Parameter Comprehensive Tester provides both wired and wireless communication channels. It features an RS-232 serial port for direct cable connections to inspection computers and an integrated WiFi module for wireless data transfer to local area networks or mobile terminals.

What is the battery life of the MQY-5C during field operations?

The instrument incorporates a high-performance internal battery that delivers more than 8 hours of continuous operation on a full charge, making it suited for uninterrupted roadside checks and field inspections.

Can the MQY-5C be calibrated in the field?

Yes. The instrument supports calibration functions to maintain accurate, repeatable measurement performance across challenging testing environments and throughout its operational service life.

What are the operating limits for engine speed and oil temperature?

The MQY-5C measures engine speeds from 500 to 6000 rpm with a resolution of 1 rpm and an error margin of ±1%. Oil temperature measurement spans from -30.0℃ to 150.0℃ with an indication error of ±2℃.

Engineering Consultation and Technical Support

Deploying reliable testing hardware is essential for maintaining regulatory compliance across vehicle inspection lanes, roadside inspection checkpoints, and machinery manufacturing facilities. The Mobile Source Five-Parameter Comprehensive Tester MQY-5C provides a calibrated, multi-parameter testing platform engineered to withstand demanding operational conditions. For detailed technical inquiries, interface integration documentation, or engineering consultations regarding the Mobile Source Five-Parameter Comprehensive Tester, please submit a request to our technical team.
