Vehicle Dynamometer for 2WD and 4WD Dyno Tuning
A car chassis dynamometer—commonly known as a vehicle dynamometer or rolling road—is a specialized piece of car inspection equipment engineered to measure a vehicle’s tractive force, speed, power output, and drivetrain.
What is a Car Chassis Dynamometer?
A car chassis dynamometer—commonly known as a vehicle dynamometer or rolling road—is a specialized piece of car inspection equipment engineered to measure a vehicle’s tractive force, speed, power output, and drivetrain integrity while the vehicle remains stationary inside a testing facility.
By simulating real-world driving resistance and road-load conditions, a chassis dynamometer allows technicians to evaluate vehicle behavior safely and accurately without the legal, environmental, and safety risks of open-road testing.
Key Operational Roles
Road-Load Simulation: Replicates actual aerodynamic drag, vehicle inertia, and rolling resistance via precision-engineered rollers and absorption units.
Powertrain & Diagnostic Analysis: Accurately evaluates engine performance, transmission shifting, torque delivery, and drive-axle stability under sustained loads.
Emissions & Compliance Verification: Delivers the steady-state driving cycles required to measure tailpipe emissions, energy efficiency, and fuel consumption accurately.
Inspection Lane Integration: Acts as an indispensable station within an automated vehicle testing line, validating roadworthiness and mechanical safety in minutes.
Whether utilized in high-volume statutory inspection centers or specialized diagnostic workshops, a chassis dynamometer delivers the repeatable, objective data required to meet international automotive testing standards.
2WD vs. 4WD Chassis Dynamometer: Which is Right for Your Shop?
Choosing the right vehicle dynamometer comes down to the drivetrains you service every day and your floor space requirements. We build our precision 2WD and 4WD chassis dynamometer systems to deliver stable load simulations, exact power measurements, and rapid vehicle turnover in demanding workshop environments.
2WD Dynamometer (Model: CTDCG-3E)
The CTDCG-3E is our dedicated two-wheel-drive solution designed for shops handling front-wheel-drive and rear-wheel-drive passenger cars and light commercial vehicles.
Optimized Footprint: Fits cleanly into existing service bays without requiring massive civil excavation.
Streamlined Workflow: Simple vehicle drive-on and tie-down procedures ensure fast turnaround per test.
Inspection Ready: Integrates directly with standard car inspection equipment for power verification, speedometer testing, and emission cycle analysis.
Target Audience: Best suited for general repair workshops, fleet maintenance depots, and specialized standard-drivetrain tuning facilities.

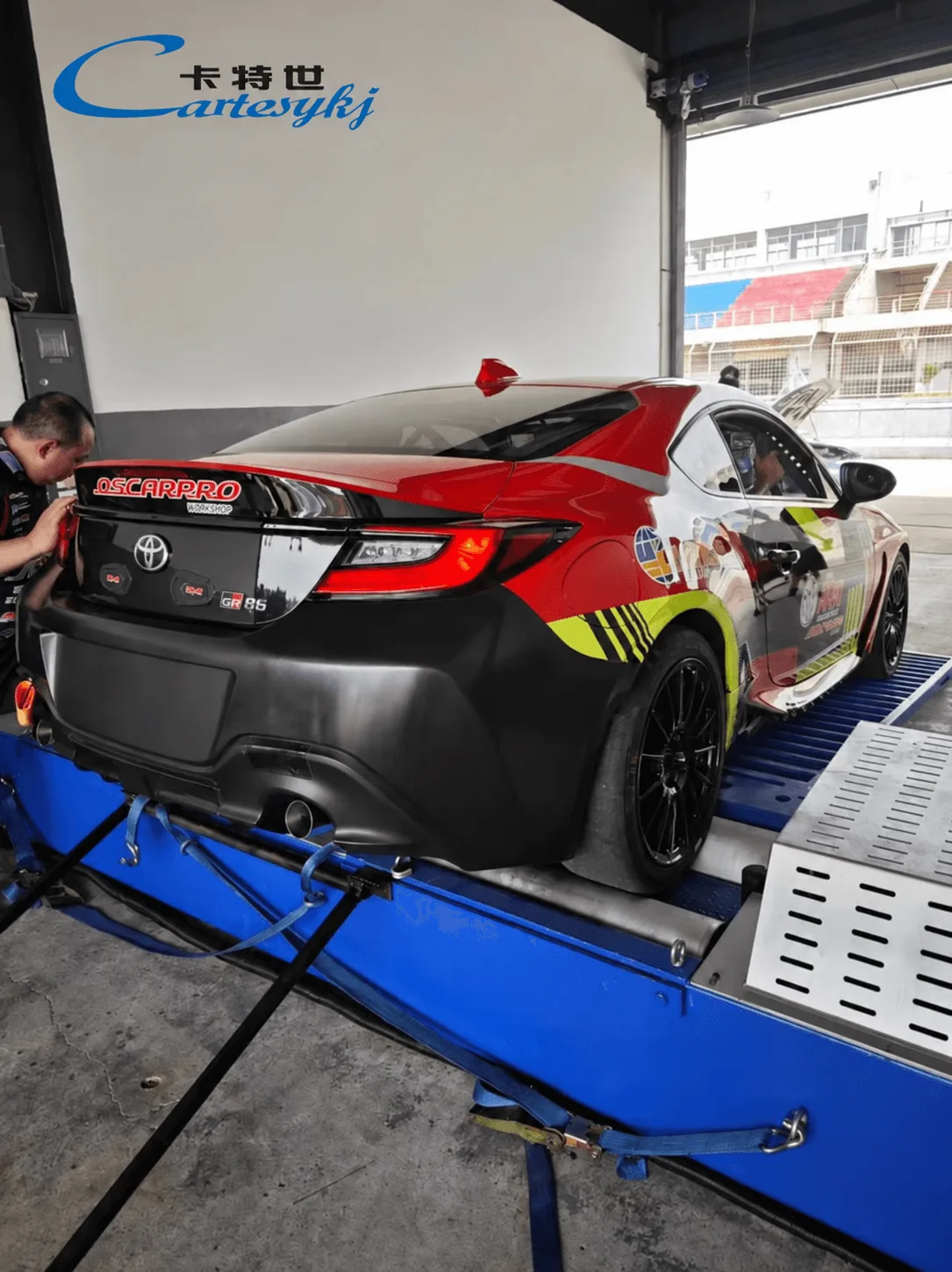

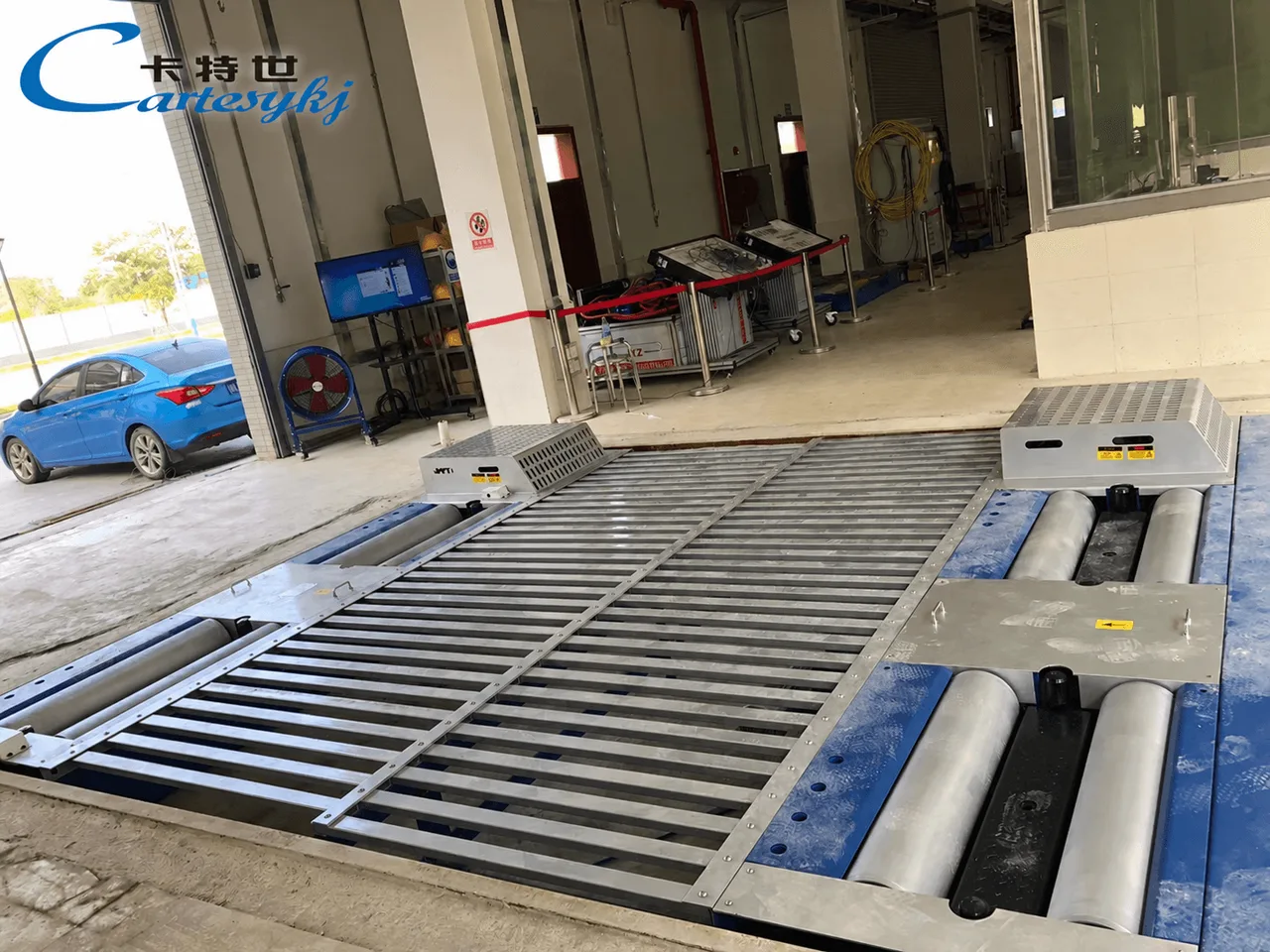

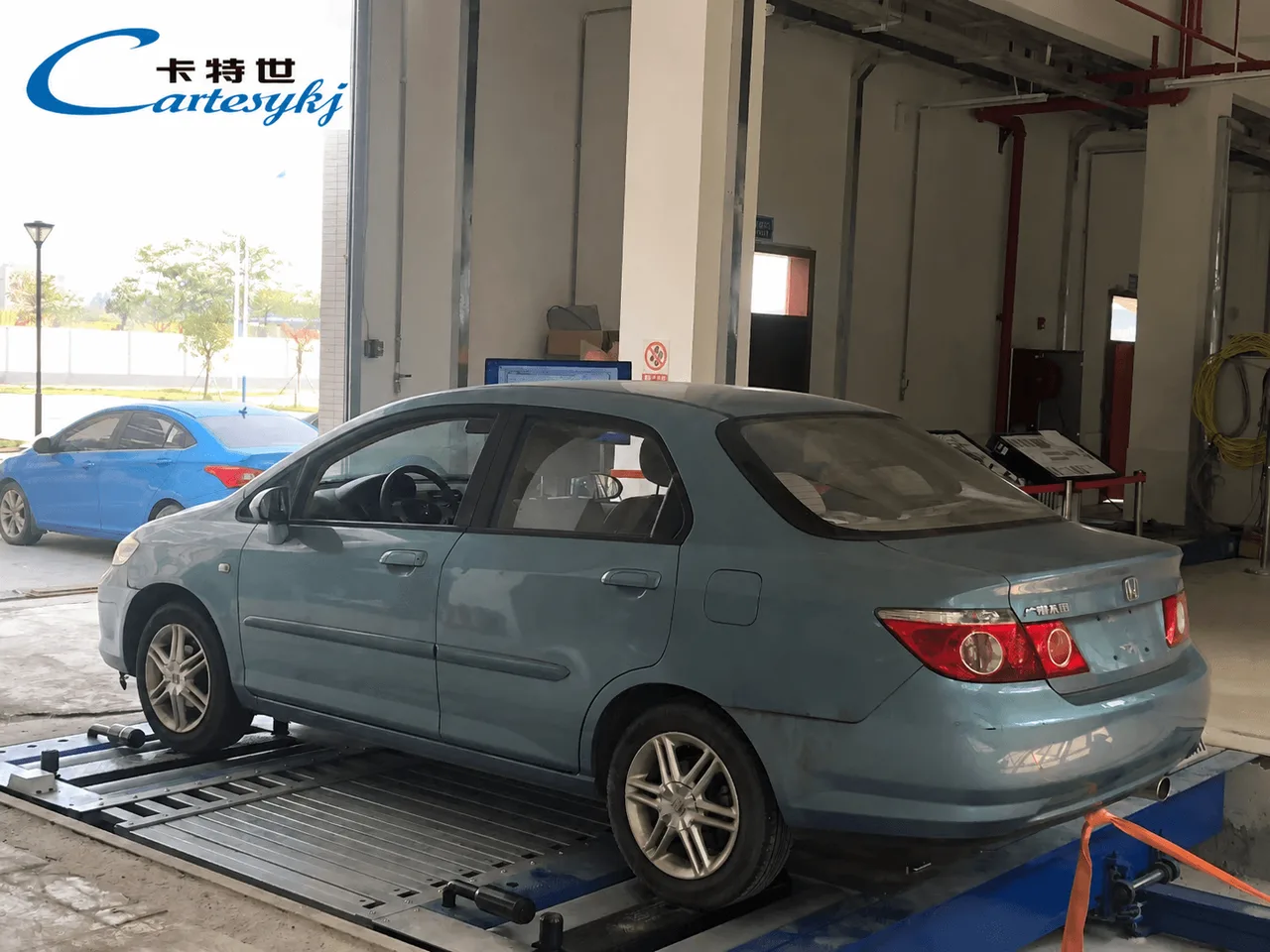

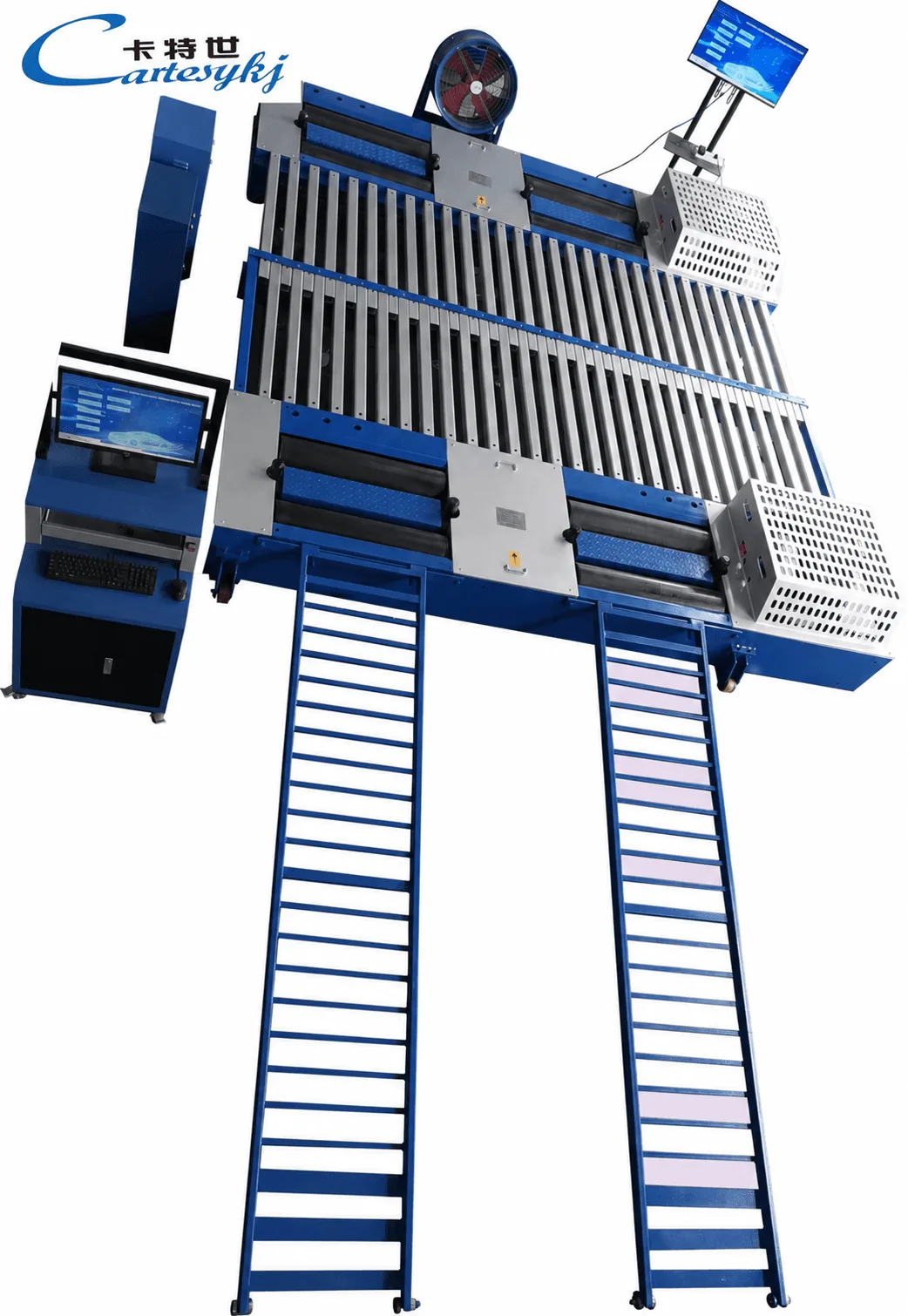

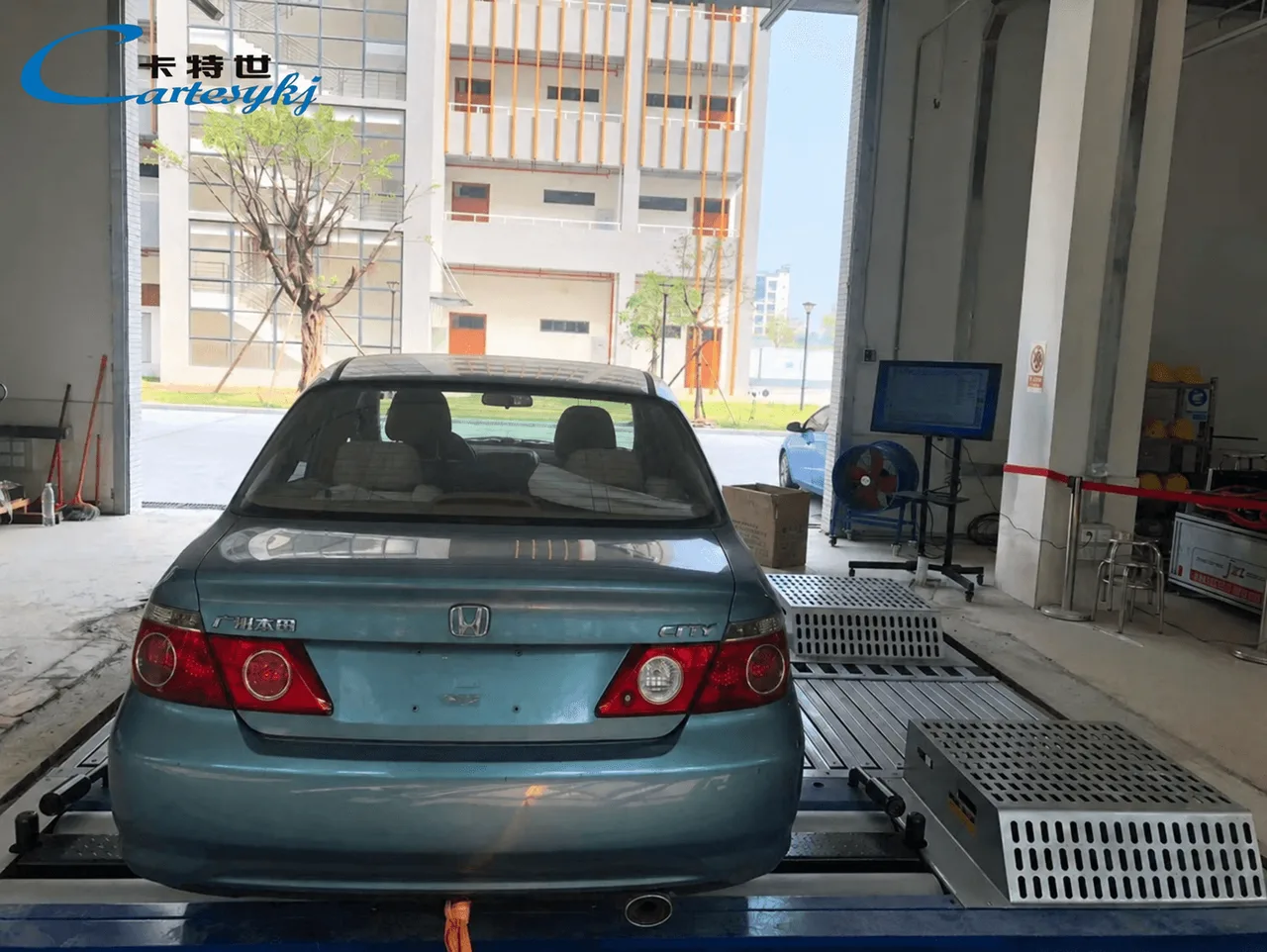

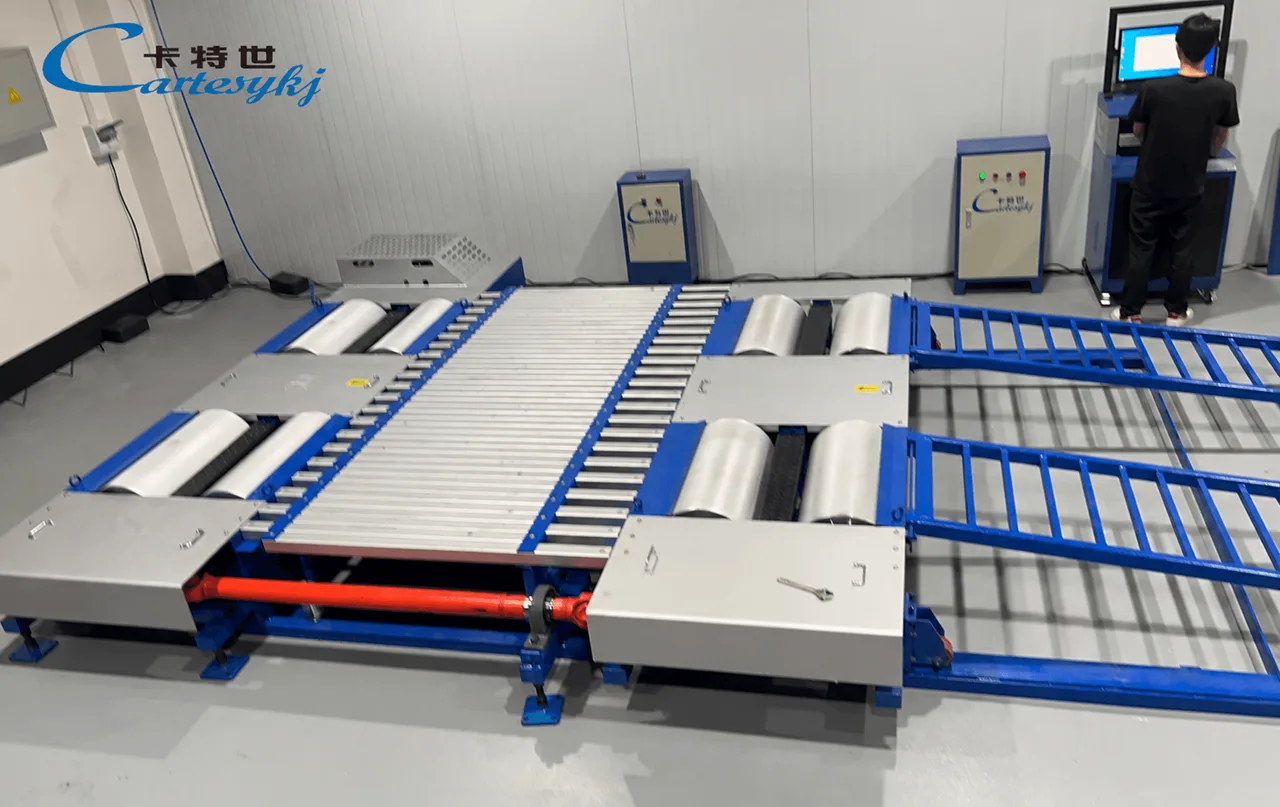

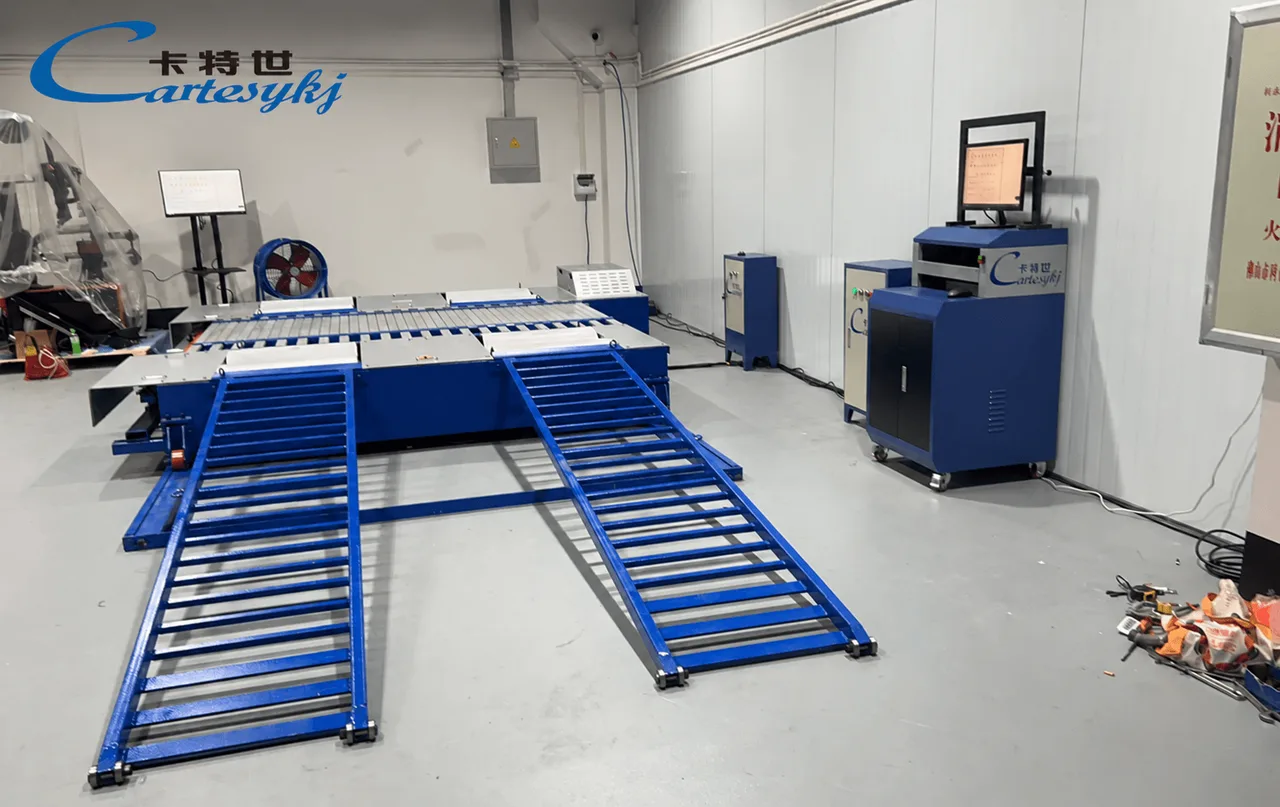

4WD Chassis Dynamometer (Model: CTDCG-3E-4WD)
The CTDCG-3E-4WD chassis dynamometer delivers full-spectrum testing capability for modern all-wheel-drive vehicles, performance sports cars, and heavy-duty AWD utility platforms.
Axle Synchronization: Mechanically and electronically synchronizes front and rear roller sets to protect complex electronic center differentials and traction control systems.
Broad Vehicle Compatibility: Adjustable wheelbase mechanisms accommodate everything from compact AWD crossovers to extended light trucks.
Heavy-Duty Testing: Handles high torque outputs and extended load cycles without heat fade or roller slippage.
Complete Inspection Integration: Built to the exacting standards expected of a premier automotive inspection line manufacturer, giving your workshop total coverage for current and future vehicle technologies.
Core Features of Cartesy Vehicle Dynamometers
We build every Cartesy vehicle dynamometer to deliver dependable measurement accuracy, long-term mechanical durability, and seamless integration into modern testing lanes. Whether deployed in standard testing stations, commercial service centers, or dedicated new energy vehicle inspection site facilities, our systems provide continuous, repeatable data under heavy daily duty cycles.
Engineered for Precision and Durability
Our car chassis dynamometer systems balance heavy-duty physical engineering with smart sensor networks. This setup ensures stable vehicle tracking, reliable load control, and real-time data acquisition across all vehicle weight classes.
| **Feature | Engineering Highlights | Practical Benefit** |
|---|---|---|
| High-Rigidity Frame | Welded, stress-relieved steel chassis | Minimizes vibration and prevents deck flexing under load |
| Precision Roller Sets | Dynamically balanced rollers with knurled or coated surfaces | Prevents tire slip while protecting tread during high-speed runs |
| Advanced Power Absorption | Air-cooled or water-cooled eddy current retarders | Delivers rapid, highly controllable resistance for accurate load simulation |
| Integrated Safety Systems | Pneumatic roller locks, safety covers, and interlock sensors | Enables fast, safe vehicle drive-on and drive-off without wheel damage |
| Universal Sensor Array | High-precision load cells and digital optical encoders | Captures instant changes in torque, road speed, and tractive effort |
From standalone diagnostic centers to large-scale vehicle maintenance stations, our dynamometers serve as central car inspection equipment designed to keep throughput high and calibration intervals wide.
Technical Specifications Breakdown
Every vehicle dynamometer we engineer is built to deliver repeatable precision, high load endurance, and seamless data acquisition under continuous testing conditions. Whether you run a high-volume testing lane or an advanced maintenance inspection workshop, our systems match your exact operational requirements.
Here is the direct technical overview of our core dynamometer platforms
| **Parameter | 2WD Dynamometer (CTDCG-3E) | 4WD Chassis Dynamometer (CTDCG-3E-4WD)** |
|---|---|---|
| Max Axle Load | Up to 3,500 kg | Up to 3,500 kg per axle |
| Maximum Testing Speed | 130 km/h | 130 km/h (synchronized) |
| Roller Diameter | Precision-machined 216 mm | Precision-machined 216 mm |
| Roller Center Distance | 450 mm | Adjustable wheelbase (electronic sync) |
| Power Absorption Unit | Air-cooled eddy current retarder | Dual air-cooled eddy current retarders |
| Measurement Accuracy | ±1% Full Scale | ±1% Full Scale |
| Wheelbase Adjustment | Fixed | 2,100 mm – 3,800 mm (automated) |
| Signal Output | Digital RS485 / Ethernet / CAN | Digital RS485 / Ethernet / CAN |
| Power Supply | 380V / 3-Phase / 50–60Hz | 380V / 3-Phase / 50–60Hz |
Key Hardware Highlights
Precision Balance Rollers: Knurled surface finish guarantees optimal tire traction without premature rubber wear.
Eddy Current Retarders: Delivers rapid, accurate load simulation for power and emissions verification.
Integrated Lift System: Pneumatic vehicle lift with roller lock simplifies driving onto and off the test bed.
Essential Add-Ons for a Complete Testing Setup
Running a professional test lane requires more than just roller hardware. To maximize the diagnostic capability and safety of our vehicle dynamometer stations, we configure complete testing environments with dedicated modular accessories designed for real-world inspection workflows.
Emissions Measurement Systems: Combine dynamic load simulation with an automotive exhaust flow analyzer to perform accurate tailpipe gas analysis under steady-state or transient drive cycles.
High-Velocity Cooling Fans: Industrial-grade cooling blowers provide high-volume airflow across the vehicle’s radiator and underbody, preventing heat soak and maintaining consistent operating temperatures during extended runs on our vehicle chassis dynamometer.
Integrated OBD-II & Sensor Packages: Real-time data acquisition interfaces pull engine RPM, boost pressure, coolant temperature, and air-fuel ratio directly into the dyno control unit for synchronous logging.
Heavy-Duty Vehicle Restraint Kits: Multi-point ratcheting tie-down systems, wheel chocks, and reinforced anchor plates secure front-wheel, rear-wheel, and all-wheel-drive platforms during maximum torque acceleration tests.
Software & User Experience
Operating a vehicle dynamometer should never feel like solving a puzzle. We built our testing software around daily workshop workflows, giving technicians complete control over every run without unnecessary complexity. From quick emission verifications to full-load power sweeps, our platform turns raw testing data into clear, actionable reports within seconds.
Intuitive Interface Built for Fast Testing
Modern workshops need speed and precision. Our proprietary control interface simplifies the operation of every car chassis dynamometer we build, keeping setup times under two minutes.
Real-Time Display: Monitor speed, tractive force, power output, and test durations simultaneously on a high-refresh digital dashboard.
Automated Test Cycles: Run standard inspection cycles automatically to ensure repeatable, tamper-proof test records.
One-Click Calibration: Zero sensors and verify load cells instantly to maintain high testing accuracy across long working shifts.
Instant Export: Generate standardized vehicle health reports and export them as PDF or CSV files for customer handoffs and database archiving.
Seamless Inspection Line Integration
A testing platform delivers maximum value when it speaks to the rest of your equipment. As an established automotive inspection line manufacturer, we design our software to interface smoothly with emissions analyzers, diagnostic scan tools, and centralized garage management systems.
| **Feature | Operational Benefit** |
|---|---|
| Live Graph Overlay | Compare multiple test runs visually to identify drivetrain drops and power loss instantly. |
| Database Archiving | Store thousands of test logs indexed by vehicle VIN and license plate for future reference. |
| Diagnostic Sync | Connect with exhaust gas analyzers and OBD devices simultaneously for synchronized readouts. |
Whether you manage a private tuning shop or a commercial testing station, explore our latest industry news and system updates to discover how our smart digital controls improve diagnostic throughput every day.
Why Choose Cartesy as Your Automotive Inspection Line Manufacturer?
We design and manufacture our equipment to withstand demanding testing environments while delivering repeatable accuracy. As a dedicated automotive inspection line manufacturer, we engineer every vehicle dynamometer to seamlessly integrate into full-service testing stations, research facilities, and commercial workshops worldwide.
Our vehicle dynamometer solutions connect directly with our centralized industrial control system to ensure high-speed data acquisition, minimal downtime, and rapid vehicle turnover on the test lane.
The Cartesy Advantage
| **Key Advantage | What We Deliver | Practical Benefit** |
|---|---|---|
| Integrated Architecture | Direct coupling with complete inspection line control and data management systems | Eliminates data silos and accelerates test cycles |
| Heavy-Duty Build | High-load roller sets with premium wear coatings | Long service life under high daily throughput |
| Modular Layout | Flexible hardware for 2WD and 4WD configurations | Easily adapts to workshop space constraints |
| Global Compliance | Engineered to meet international vehicle testing protocols | Smooth certification and standard operating compliance |
Built for Demanding Operations
Precision Bench Engineering: Built with heavy-duty steel framing to eliminate flex during high-torque power tests.
Streamlined Workflow: Simple sensor calibration and fast automated diagnostic sequences keep test lanes running without bottlenecking.
Direct Manufacturer Support: Comprehensive technical documentation, accessible spare parts, and dedicated global engineering assistance.
Frequently Asked Questions (FAQ)
What is the primary function of a vehicle dynamometer in an inspection setup?
A vehicle dynamometer measures wheel power, tractive force, speed, and real-time load simulation right inside the workshop. By safely reproducing road conditions on a stationary bed, it lets us evaluate engine performance, drivetrain output, and emission profiles without outdoor road testing.
Can a 2WD dynamometer test modern all-wheel-drive vehicles?
No. Testing an AWD or 4WD vehicle on a standard 2WD setup can trigger traction control faults or cause mechanical binding in the center differential. For multi-axle drive platforms, an electronically synchronized 4WD Chassis Dynamometer is required to keep front and rear axle wheel speeds aligned.
How does a car chassis dynamometer integrate with other car inspection equipment?
Our dyno units communicate directly with existing lane management systems, exhaust gas analyzers, and central testing databases. Through standardized digital interfaces, test runs link seamlessly with your lane workflow, saving time and keeping data clean across the entire line. For full technical layouts and equipment combinations, explore our comprehensive catalog downloads.
What maintenance does a vehicle dynamometer require?
Regular upkeep is straightforward and centers on keeping tests accurate and operations safe: Roller surface inspection: Check knurled or coated roller surfaces for rubber buildup and wear. Bearing lubrication: Grease high-speed roller bearings at scheduled operating intervals. Sensor calibration: Periodically zero and verify load cells and speed sensors using calibrated weights. Pneumatic and safety locks: Ensure roller lift locks and vehicle restraint anchorages operate reliably.
Why source directly from an automotive inspection line manufacturer?
Partnering directly with an experienced automotive inspection line manufacturer guarantees factory-calibrated precision, seamless software compatibility, and direct access to original spare parts. We engineer each chassis dyno to handle high-throughput testing cycles, ensuring long-term reliability and complete compliance with global vehicle testing standards. For in-depth industry insights and best practices, check our guide on vehicle inspection knowledge.
Conclusion & Call to Action
Investing in a dependable Vehicle Dynamometer elevates testing accuracy, streamlines workshop operations, and ensures complete compliance with global automotive standards. Whether upgrading a service facility or setting up a full inspection lane, choosing robust testing systems guarantees repeatable, real-world diagnostic results under every operating condition.
Partner with a Trusted Automotive Inspection Line Manufacturer
As a specialized automotive inspection line manufacturer following strict testing standards, we deliver reliable vehicle testing equipment engineered for long service life, high measurement accuracy, and seamless workflow integration.
Precision Data: Accurate power, torque, and emission load simulations for all drivelines.
Modular Design: Configurable hardware suitable for standalone bays or turnkey inspection systems.
Global Standards: Fully compliant equipment ready to meet rigorous statutory verification mandates.
Contact our engineering team to discuss technical specifications, explore facility layouts, and secure the right dynamometer setup for your testing needs.
