3 in 1 Vehicle Inspection Line for 3T Vehicles
Modern testing stations and automotive workshops require speed, precision, and space-conscious engineering. A 3-in-1 vehicle inspection line consolidates primary diagnostic checkpoints into a single, continuous.
Why Choose a 3-in-1 Vehicle Inspection Line?
Modern testing stations and automotive workshops require speed, precision, and space-conscious engineering. A 3-in-1 vehicle inspection line consolidates primary diagnostic checkpoints into a single, continuous drive-through lane. By integrating core testing stages, facility operators maximize daily vehicle throughput while minimizing footprint requirements.
Key Operational Advantages
- Optimized Floor Space: Merges multiple diagnostic platforms into a unified footprint, cutting required civil work and workshop real estate.
- Higher Testing Throughput: Vehicles move through diagnostic checkpoints in a single sequence, eliminating repositioning delays.
- Synchronized Diagnostic Data: Centralized data capture guarantees immediate generation of unified roadworthiness and PTI compliance reports.
- Reduced Labor Overhead: Automated test sequences enable a single operator to manage brake, sideslip, and load measurements efficiently.
| Operational Factor | Traditional Multi-Station Layout | Integrated 3-in-1 Inspection Lane |
|---|---|---|
| Space Utilization | High (demands multiple separate bays) | Low (compact single-lane installation) |
| Testing Sequence | Fragmented with multiple stops | Continuous, unified diagnostic flow |
| Cycle Time Per Car | 10 to 15 minutes | Under 3 to 5 minutes |
| Data Consolidation | Manual entry or multi-software sync | Instant, unified test report generation |
| Workflow Efficiency | High labor dependency | Automated sequence with minimal handling |
Deploying an integrated vehicle testing equipment system provides testing stations, fleet depots, and commercial garages with consistent diagnostic accuracy and a rapid return on investment.

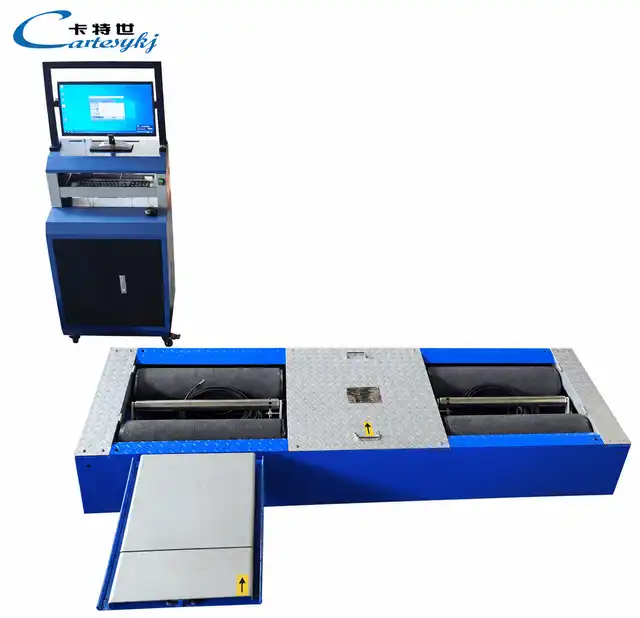

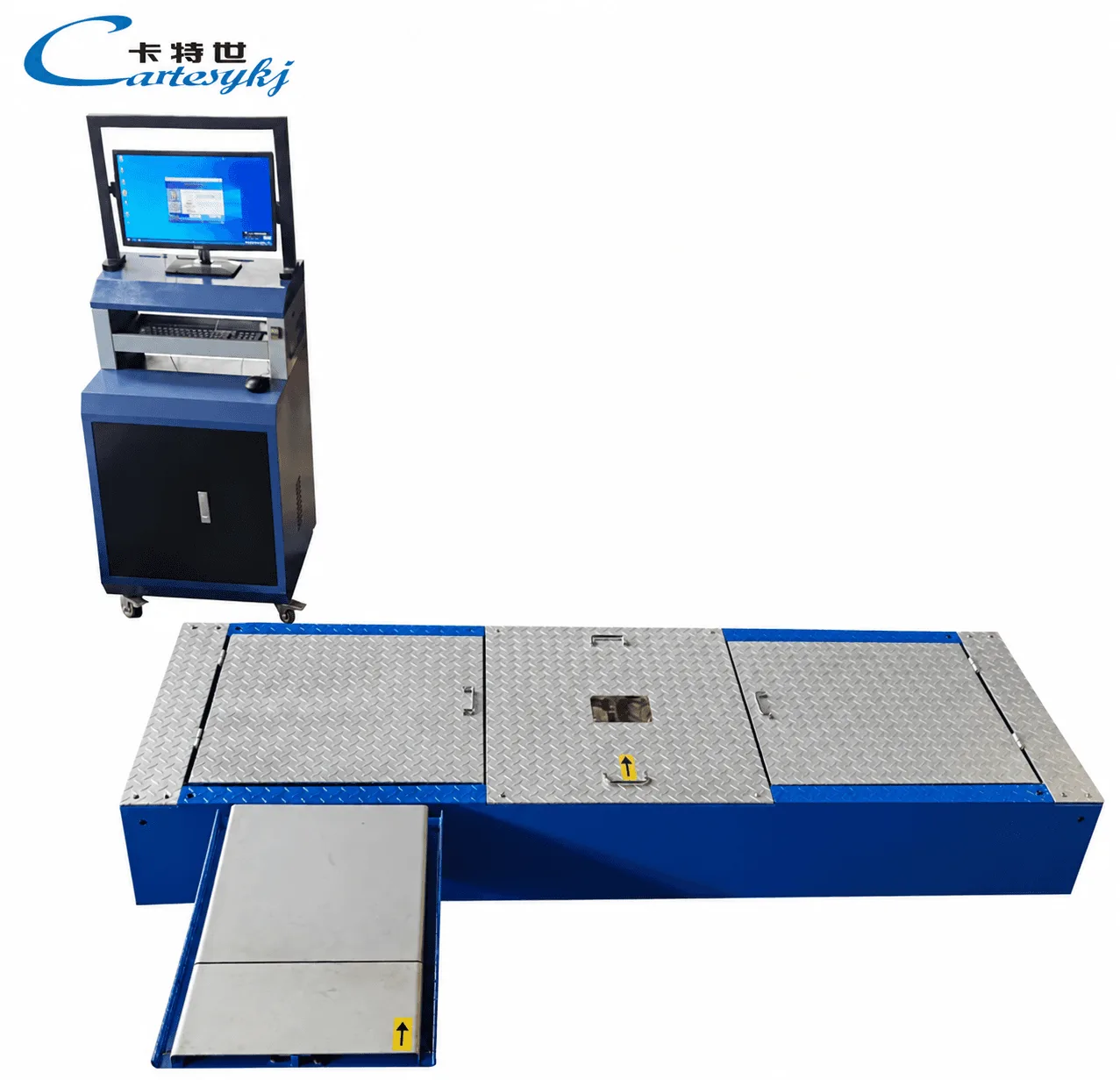

Breakdown of the 3-in-1 Configuration (CTGT-3-3)
When setting up a modern automated vehicle testing lane, space and speed define daily workshop profitability. We engineered the CTGT-3-3 setup to merge three non-negotiable diagnostic checkpoints into a unified, high-throughput inspection flow. Instead of moving a car between scattered stations, this integrated 3-in-1 vehicle inspection line captures all baseline safety data in a single drive-through sequence.
The Vehicle Brake Tester
Stopping power is the core of any roadworthiness audit. Our roller brake tester module evaluates braking force, deceleration efficiency, and left-to-right imbalance under realistic dynamic conditions.
- Roller Surface Grip: Built with wear-resistant coating that replicates real road friction for consistent measurement.
- Dual-Wheel Analysis: Detects force discrepancies instantly to highlight dragging calipers, uneven pad wear, or hydraulic pressure loss.
- Smooth Drive-Through: For facilities handling low-profile passenger cars or specific layout limits, our luxurious flat plate brake tester offers an adaptable platform design that minimizes vehicle clearance issues.
The Side Slip Tester
Steering geometry flaws waste fuel and accelerate tire wear before the driver even notices an issue. The integrated side slip tester serves as an automated dynamic wheel alignment check.
- Dynamic Plate Measurement: As the axle glides over the sensing plate, the system monitors lateral movement per kilometer or meter.
- Instant Alignment Feedback: Flags severe toe-in or toe-out issues in seconds without requiring manual clamp-on targets.
- Rugged Mechanics: Low-maintenance mechanical linkages provide zero-play response, handling steady workshop traffic without drifting out of calibration.
The Axle Load Tester
Accurate brake ratio calculations are impossible without precise weight distribution data. Our integrated load cells read static wheel and axle masses directly before or during braking checks, feeding real-time weight values into the central processor.
- High-Precision Load Cells: Delivers instant, certified axle weight values directly to the central diagnostic display.
- Dynamic Brake Calculation: Automatically calculates true braking efficiency percentages based on exact measured mass rather than generic manufacturer estimates.
- Versatile Weight Verification: For operations running heavy-duty audits or standalone weight checks, our dedicated vehicle axle wheel load tester provides reliable individual wheel and total axle load tracking under rigorous daily operation.
Key Technical Specifications (At a Glance)
Our 3-in-1 vehicle inspection line delivers high throughput and repeatable precision by consolidating braking, alignment, and load measurements into a unified diagnostic sequence. Designed for rigorous daily operation in commercial workshops and certified test lanes, the integrated setup ensures dependable data acquisition across all primary test stations.
| Inspection Module | Key Specifications | Testing Standards & Scope |
|---|---|---|
| Roller Brake Tester | High-friction corundum or ribbed rollers; dual drive motors; bidirectional testing | Dynamic braking force, left/right brake imbalance, braking efficiency |
| Side Slip Tester | Dynamic slide plate with low-friction bearings; high-accuracy displacement sensor | Dynamic wheel alignment, toe-in/toe-out deviation (mm/m or m/km) |
| Axle Load Tester | High-precision shear beam load cells; rigid load-bearing frame | Static and dynamic axle weight measurement, load distribution |
| Central Control Unit | Industrial-grade control cabinet; digital display / PC interface; automated data logging | Real-time sensor readout, pass/fail evaluation, automated report generation |
We engineer this integrated vehicle testing equipment for continuous reliability and minimal maintenance. Whether applied to standard passenger fleets or adapted for specialized requirements featured across our global testing installations and project cases, the system provides certified diagnostic data with maximum workshop space efficiency.
Optimizing Your Testing Center with Auxiliary Equipment
Running a smooth inspection lane means looking beyond the basics. While our 3-in-1 vehicle inspection line handles the core safety checks, adding dedicated auxiliary tools turns a standard workshop into a high-capacity testing facility. We configure lane layouts to eliminate bottlenecks, keep vehicles moving, and ensure every diagnostic check meets regulatory standards.
To get the most out of your setup, consider integrating these essential stations
- Headlight Aim Testers: Verify beam intensity, alignment, and glare prevention quickly alongside mechanical tests.
- Emission & Smoke Analyzers: Monitor petrol and diesel exhaust compliance without pulling the vehicle out of the main inspection flow.
- Two-Wheel Add-ons: Expand your service range by pairing your primary lane with specialized brake and axle load testing equipment designed to manage diverse vehicle types on the same workshop floor.
- Centralized Data Consoles: Link all testing modules into a unified software system, generating single, standardized inspection reports instantly for vehicle owners and regulatory authorities.
Matching the right auxiliary vehicle testing equipment with your core lane cuts turnaround time per vehicle and delivers a seamless, reliable testing routine.
Why Partner with Cartesy as Your Vehicle Inspection Equipment Supplier?
Choosing the right manufacturing partner directly impacts your facility's throughput, testing accuracy, and return on investment. As a dedicated Vehicle Inspection Equipment Supplier, we design and engineer every 3-in-1 Vehicle Inspection Line to handle demanding daily workloads while meeting rigorous international safety and metrology standards.
Here is why commercial testing stations, fleet depots, and workshops partner with us
- Engineered for Reliability: We build our testing lanes using heavy-duty structural steel, precision sensors, and high-traction surface coatings to ensure long-term stability and repeatable measurements.
- Seamless Workflow Integration: Our integrated hardware combines the side slip tester, axle load tester, and vehicle brake tester into a synchronized system driven by intuitive central software.
- Tailored Engineering Solutions: Whether you are retrofitting a compact pit or outfitting a modern maintenance inspection workshop, we customize mechanical configurations and data interfaces to match your site requirements.
- Future-Proof Capabilities: Our vehicle testing equipment supports diverse fleets, providing certified diagnostic accuracy for conventional combustion models as well as modern requirements seen in a specialized new energy vehicle inspection site.
- Full-Lifecycle Technical Support: We provide end-to-end assistance, including foundation layout planning, software calibration, operator training, and reliable supply of genuine spare parts.
Frequently Asked Questions (FAQ)
What equipment makes up a 3-in-1 vehicle inspection line?
Our integrated setup combines three essential diagnostic units into a unified bay: Side Slip Tester (measures dynamic wheel alignment and dynamic tire scuff as the vehicle rolls across the plate); Axle Load Tester (quickly reads static axle weight to ensure correct braking efficiency calculations); Vehicle Brake Tester (uses high-friction rollers to evaluate individual wheel braking forces, drag, and balance across each axle).
How much workshop space does an integrated test lane save?
By consolidating the side slip tester, axle load tester, and roller brake tester into a single drive-through footprint, you eliminate the need for separate diagnostic stations. This reduced footprint allows service centers to maximize bay utilization, a setup proven across high-throughput vehicle maintenance facilities running rapid inspection turnarounds.
How fast is the complete diagnostic cycle?
A standard run through the 3-in-1 vehicle inspection line takes under three minutes. The sequence runs automatically: the technician drives over the alignment plate, halts on the axle scale, and drops into the brake rollers. The central console records all parameters instantly without manual data entry.
Can this setup connect to our local workshop management software?
Yes. Our centralized control unit compiles real-time measurements into standardized digital reports. The system exports test data directly via standard serial or LAN protocols, allowing seamless integration with regional periodic inspection databases and independent workshop management platforms.
Conclusion & Call to Action (CTA)
Upgrading your workshop or test station with our 3-in-1 Vehicle Inspection Line maximizes vehicle throughput, eliminates operational bottlenecks, and guarantees precise diagnostic results. By integrating a dynamic side slip tester, precision axle load tester, and high-performance vehicle brake tester into a single, compact testing lane, we help facilities deliver fast, accurate roadworthiness evaluations without wasting valuable floor space.
Upgrade Your Inspection Lane Today
As an experienced vehicle inspection equipment supplier, we design systems built for demanding continuous use, automated reporting, and simplified workflow management. Whether setting up a new diagnostic lane or modernizing existing infrastructure, our team provides complete technical guidance from pit layout planning to final calibration.
- Optimized Bay Efficiency: Complete comprehensive multi-point diagnostics in a single drive-through sequence.
- Accurate Data Capture: Eliminate manual paperwork with synchronized diagnostic readouts and reporting software.
- Reliable Field Support: Access dedicated equipment planning, installation assistance, and certified spare parts.
Explore our latest vehicle testing equipment news to track technological developments and technical updates across the vehicle testing industry. Contact our team today to request an equipment quote and configure the ideal 3-in-1 vehicle inspection line for your facility.

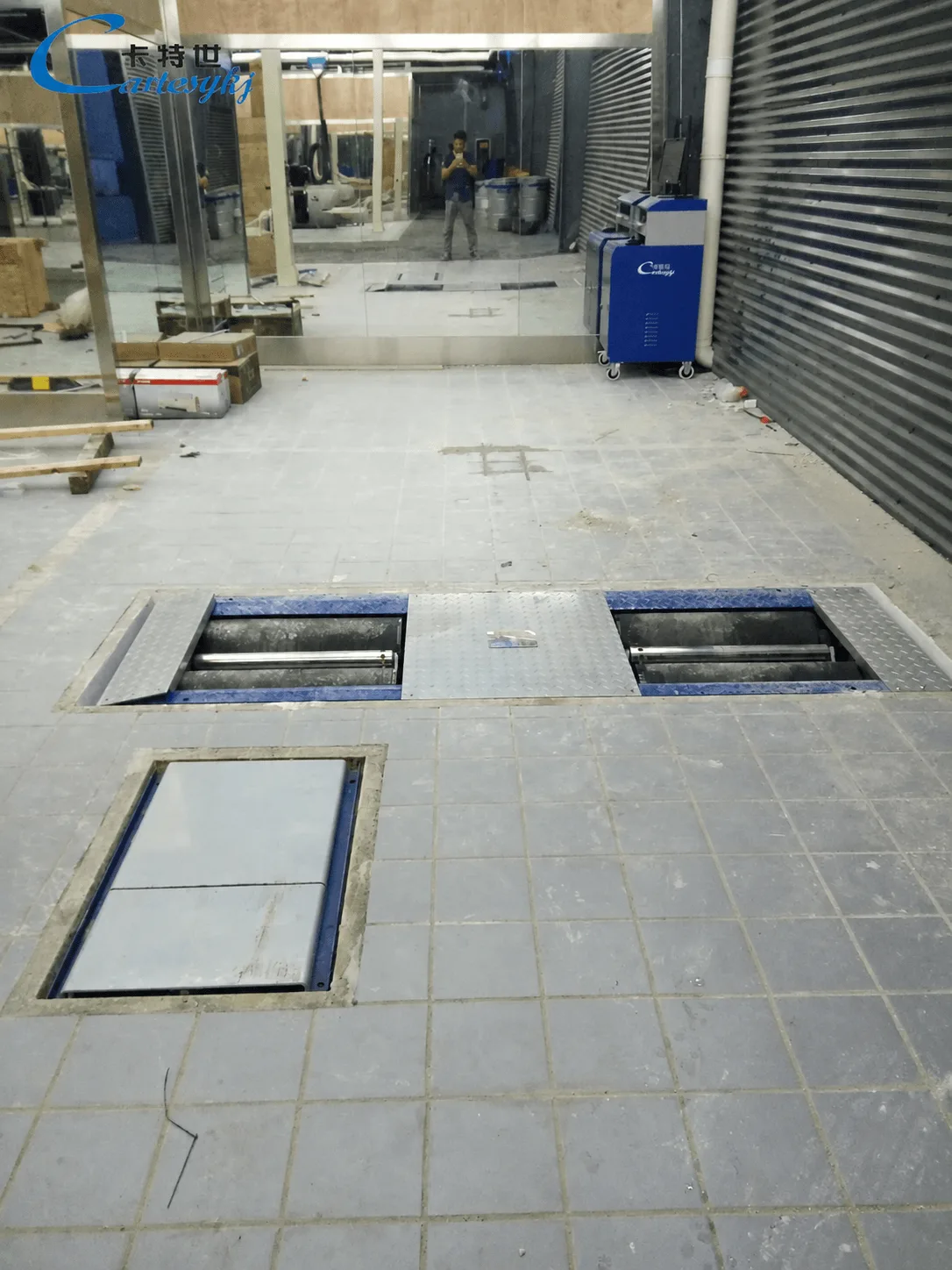

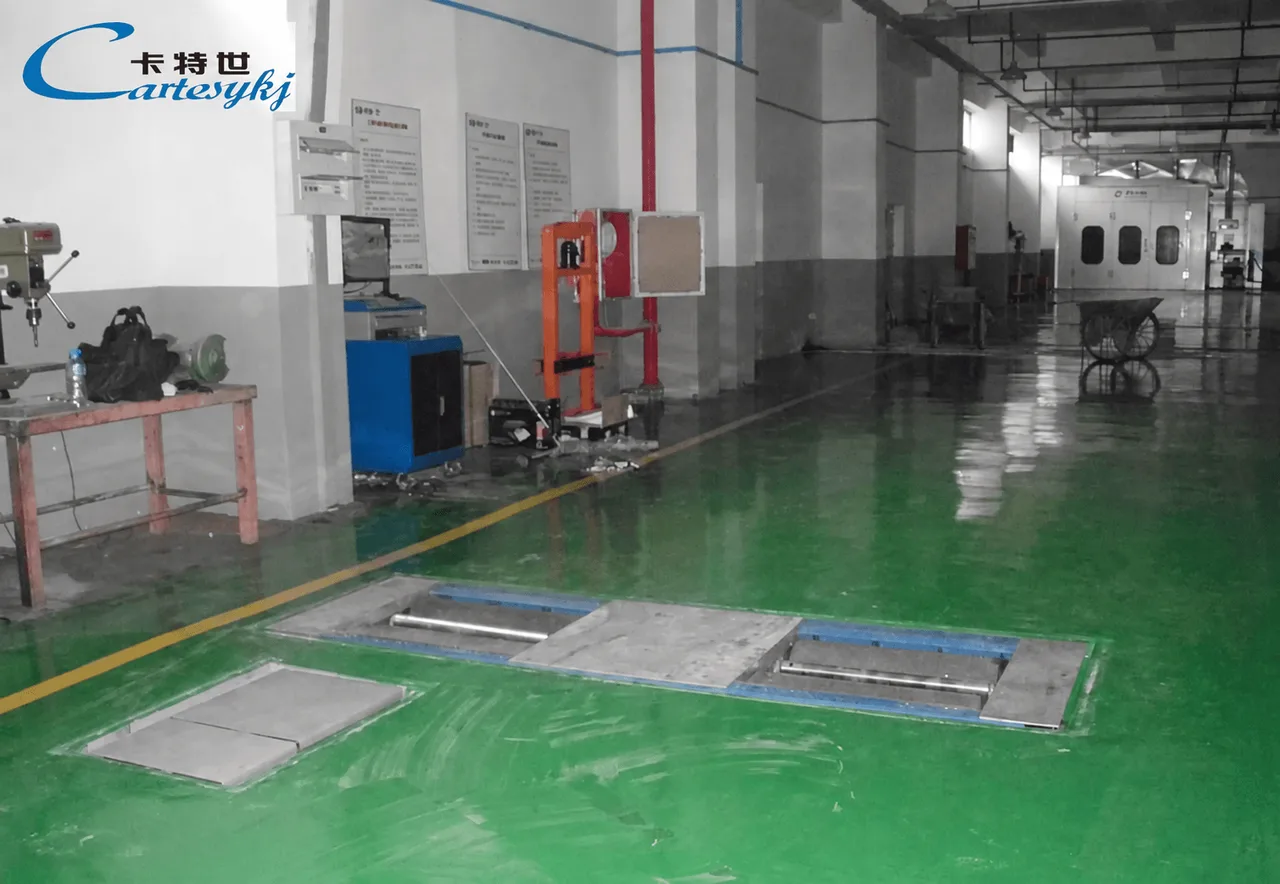

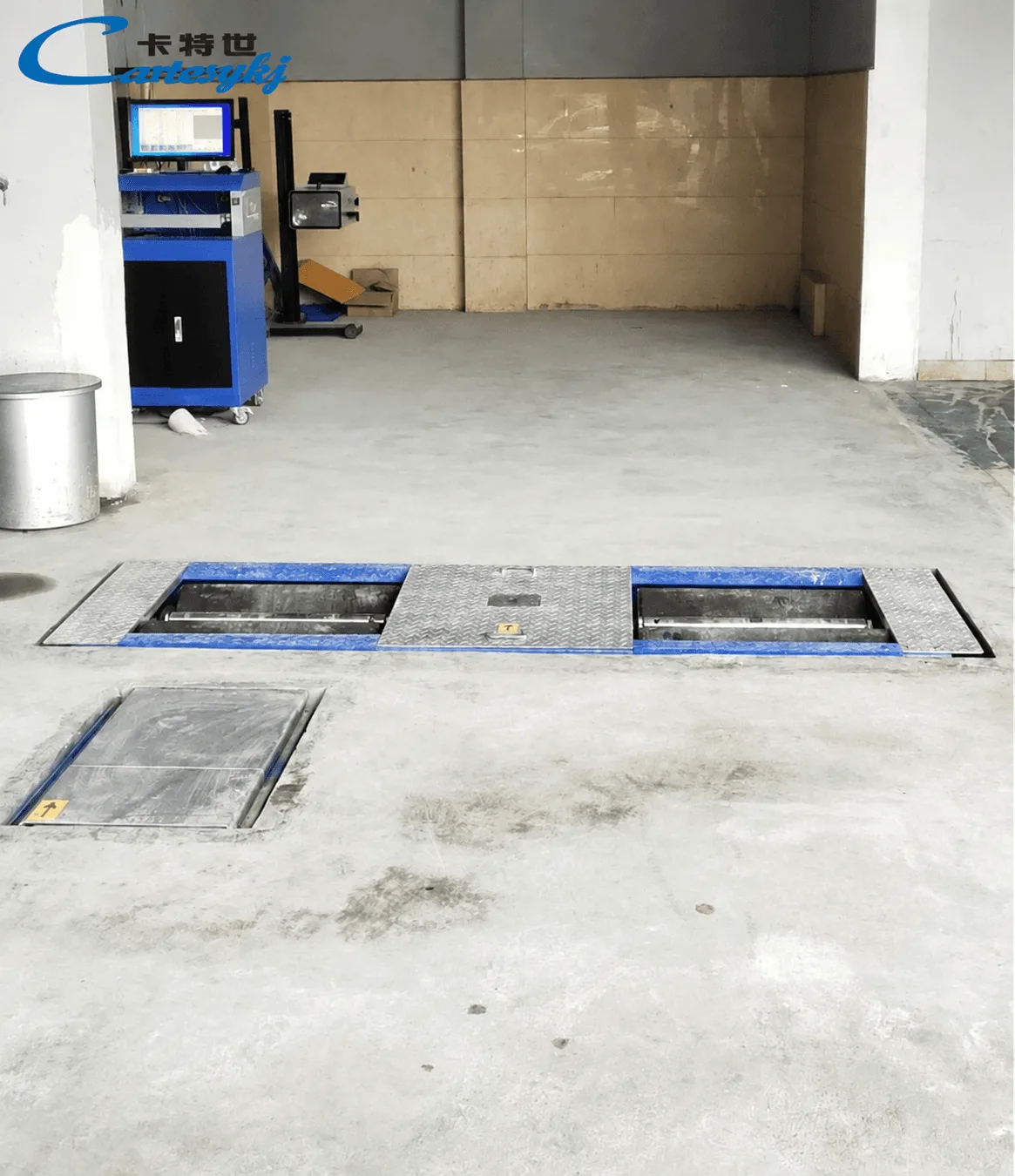

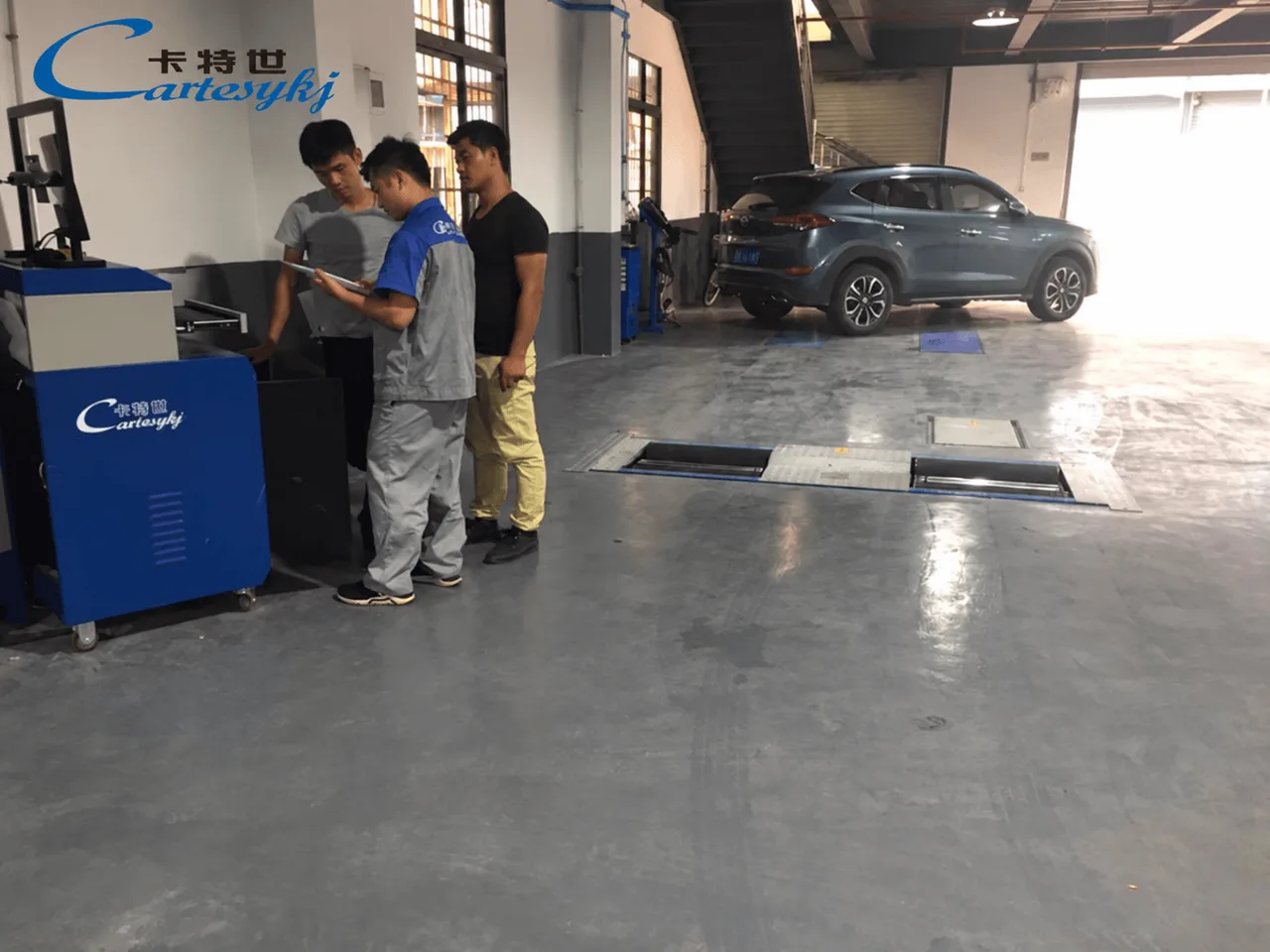

Project imagery
